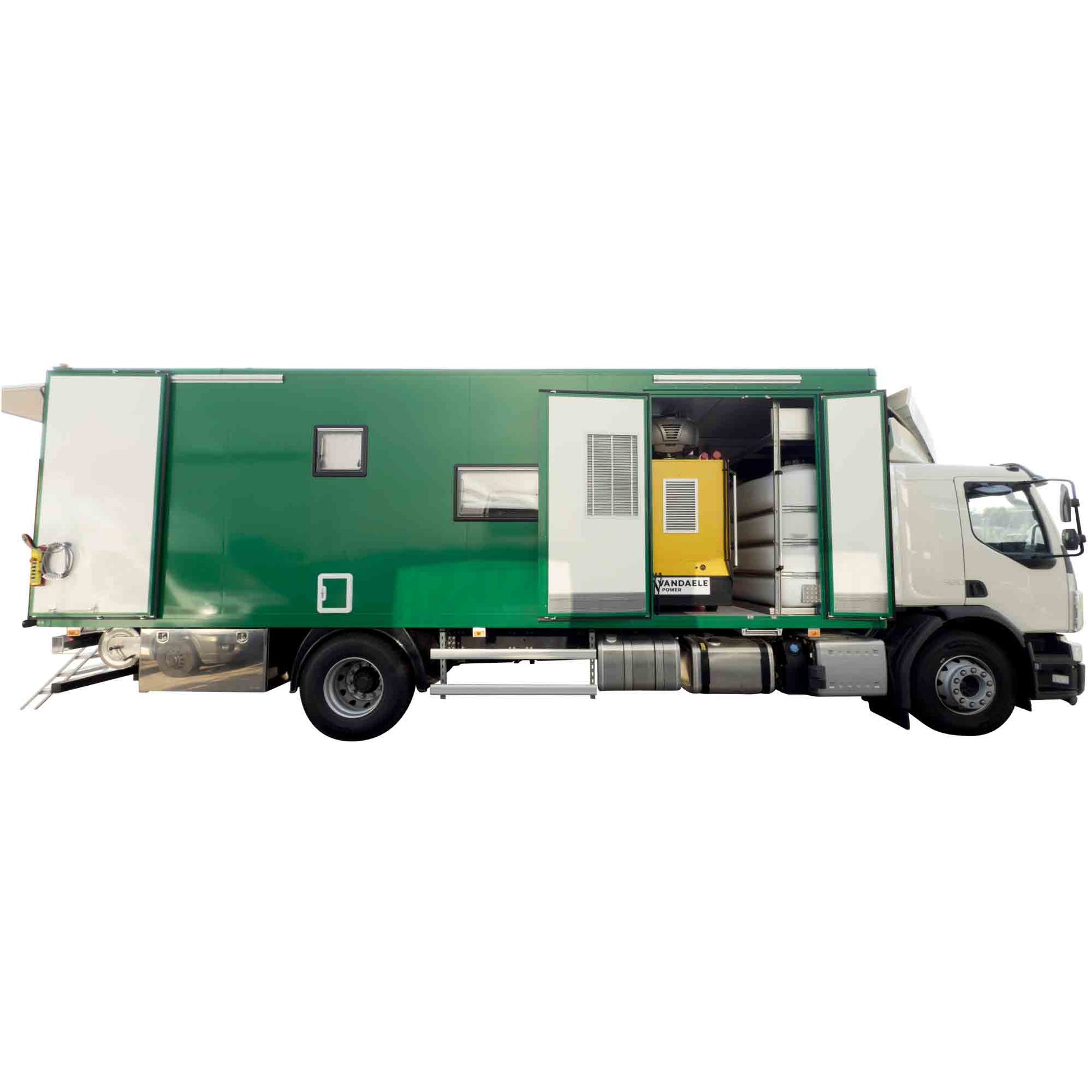

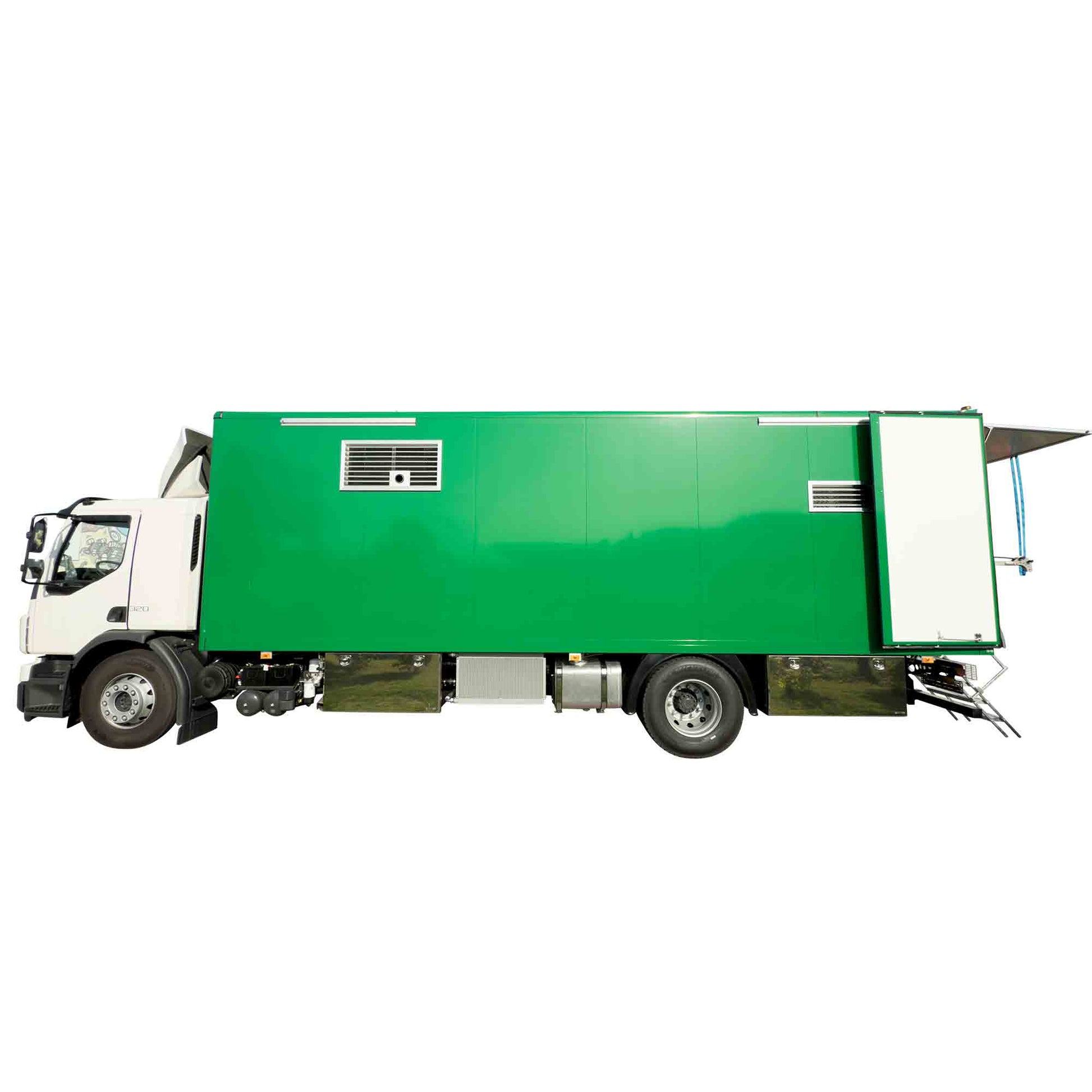

IBG Multi UV – Maximum Efficiency in UV Curing & Pipe Cleaning in One Vehicle

The IBG Multi UV system combines state-of-the-art UV curing technology for inliners with a powerful high-pressure flushing unit for pipe cleaning – delivering maximum flexibility for rehabilitation projects of any size.

3D Tour:

Cutting-Edge UV Curing

• High-performance UV light trains for diameters from DN 150 up to DN 2000, scalable to 16 x 2250 Watt.

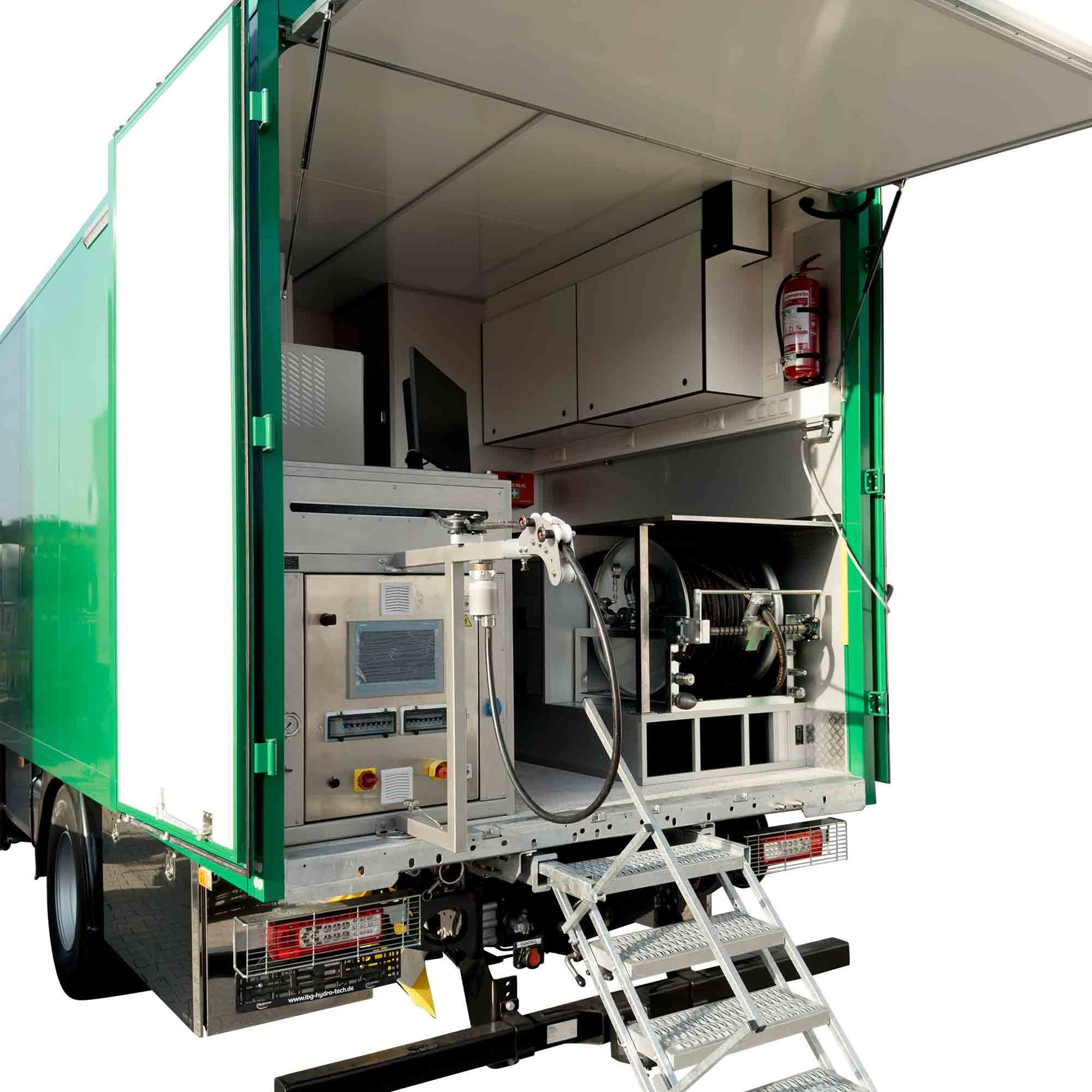

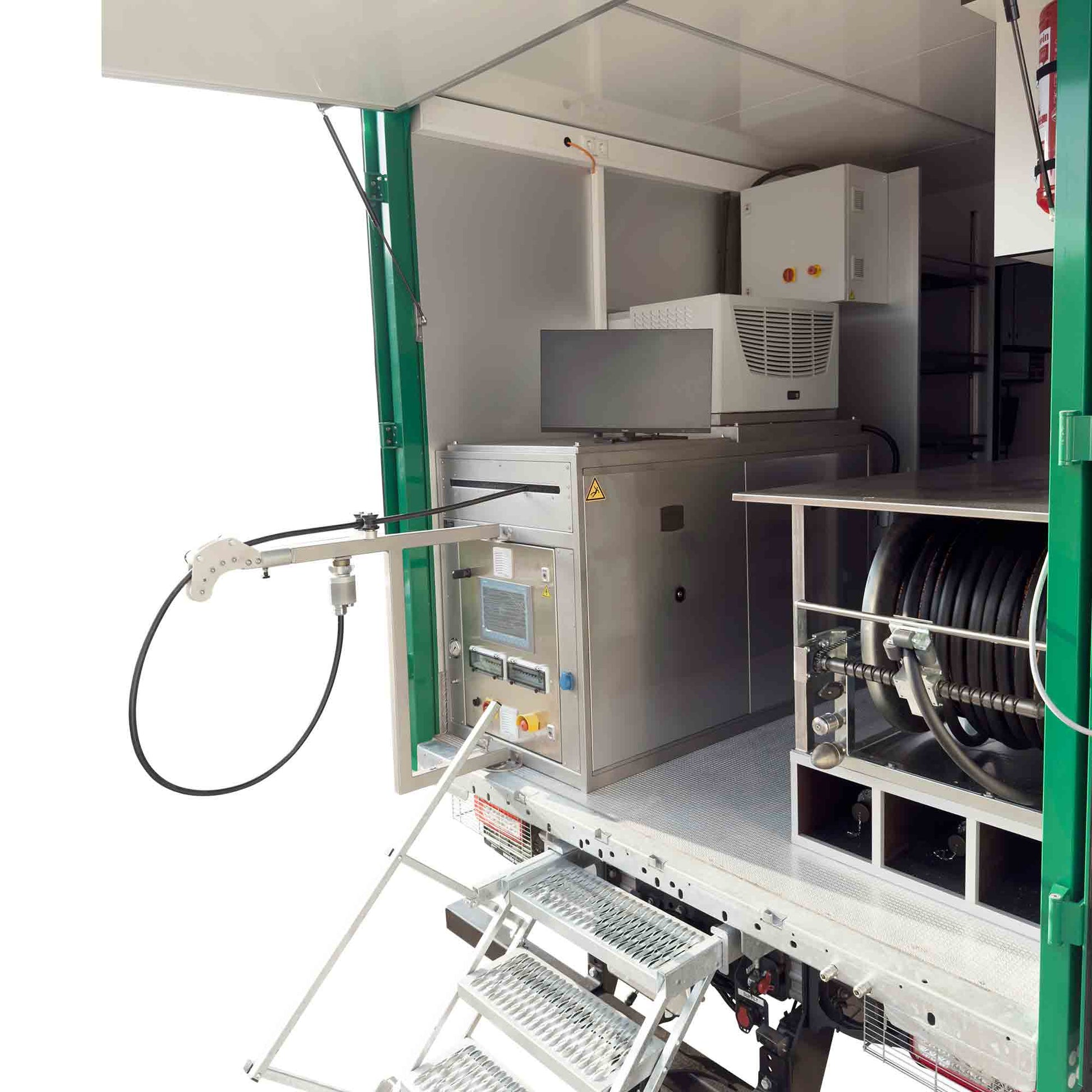

• SIEMENS S7-1500 PLC control with touch panel and fully automated processes: automatic lamp ignition, pressure calibration, continuous data recording.

• CureTech software for documentation, fault memory, and remote online support (incl. remote maintenance via SIM card).

• Full recording of all curing-relevant parameters: pressure, curing speed, laminate temperature (exotherm), cable length, power status.

• Industry 4.0 ready – all data and processes can be stored digitally and transferred via internet connection.

Maximum Control & Safety

• Automatic monitoring of cable drum standstill, overload, pressure drop, or overheating.

• Visual and acoustic warnings with immediate emergency shutdown if necessary.

• Optional: automatic endpoint shutdown when the curing run is completed.

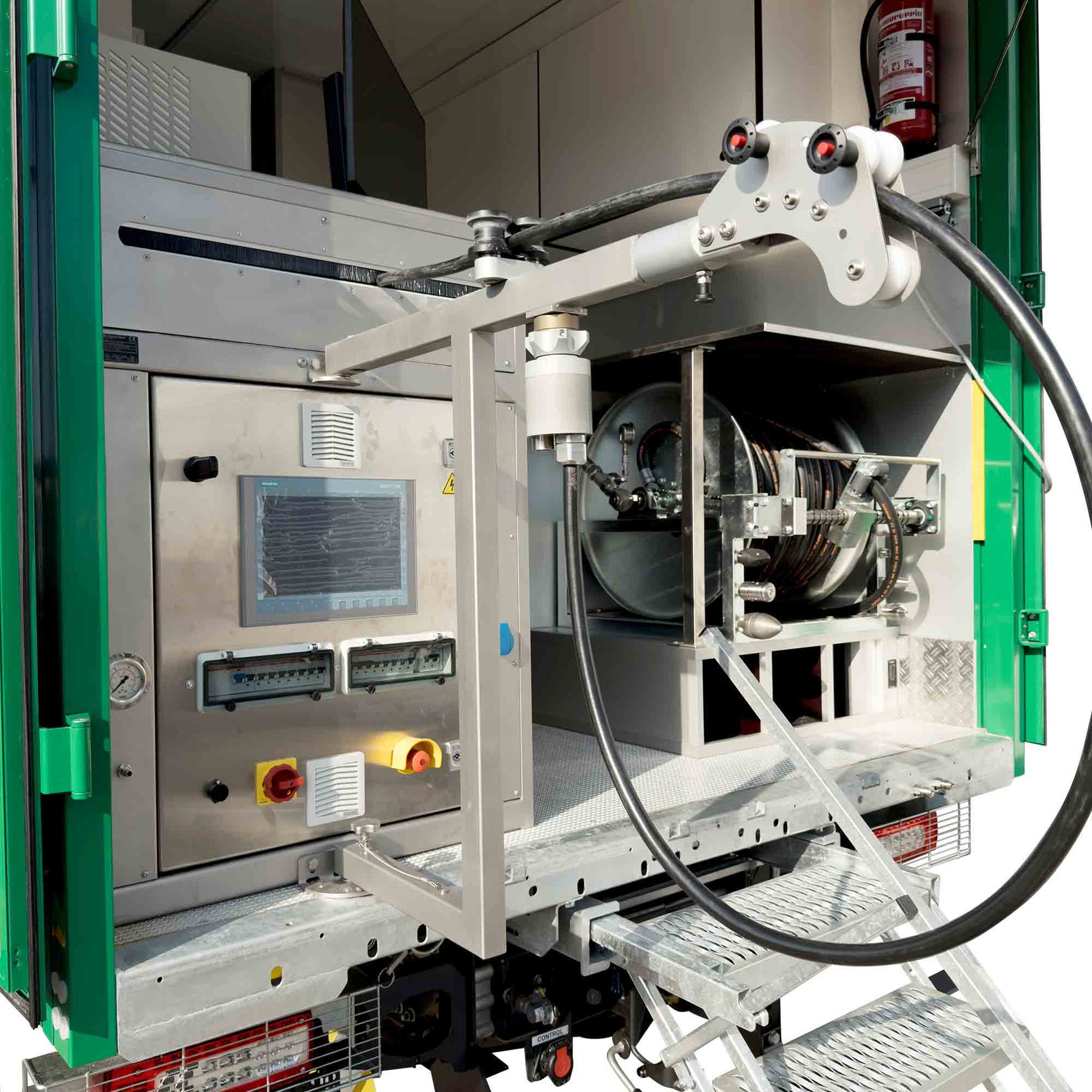

• Robust stainless steel frame with plug & play wiring and long-lasting drum technology (up to 350 m cable length).

Integrated High-Pressure Flushing System

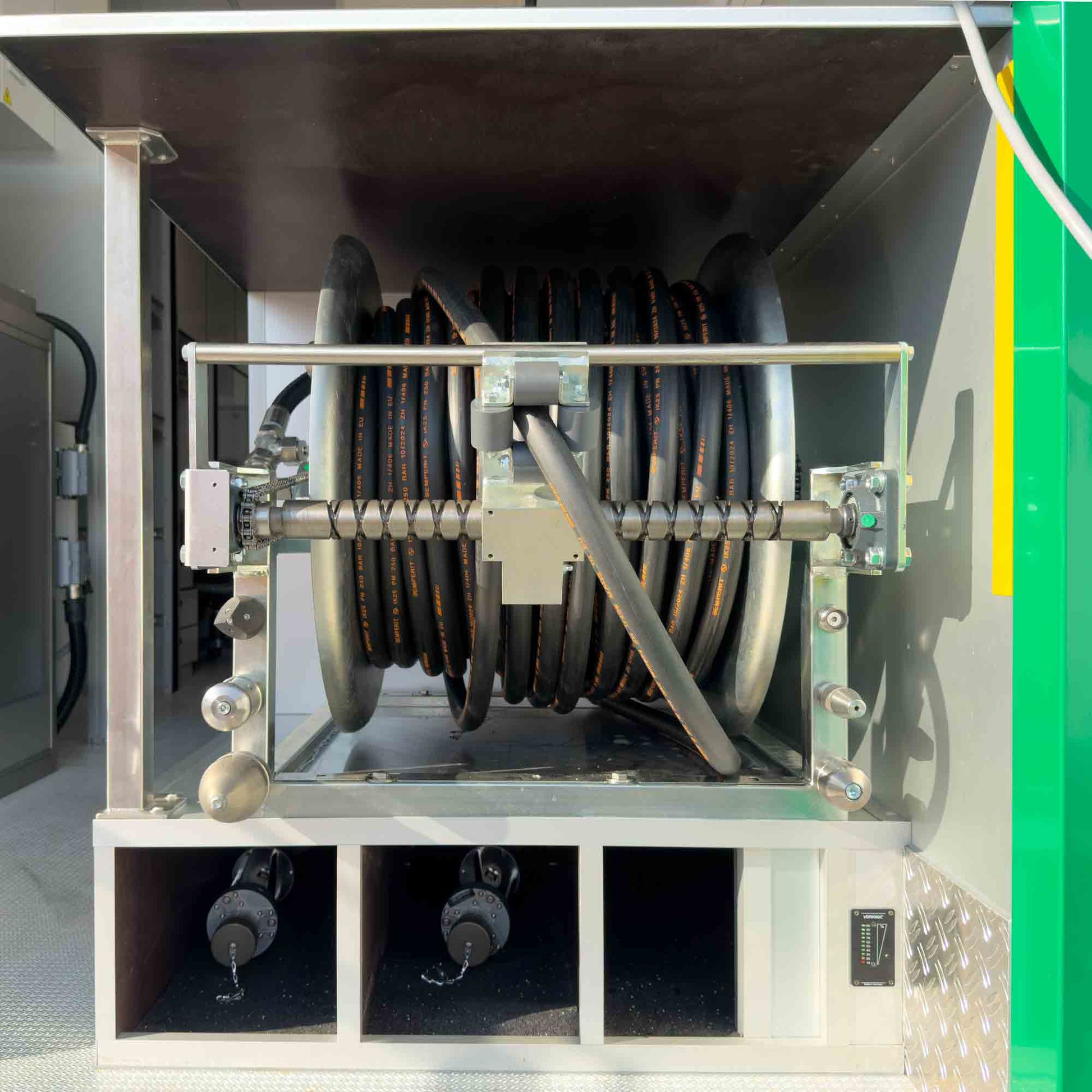

• Hydraulic-driven with fixed 120 m reel.

• Capacity: 186 l/min at 160 bar – incl. IBG nozzle set for versatile cleaning tasks.

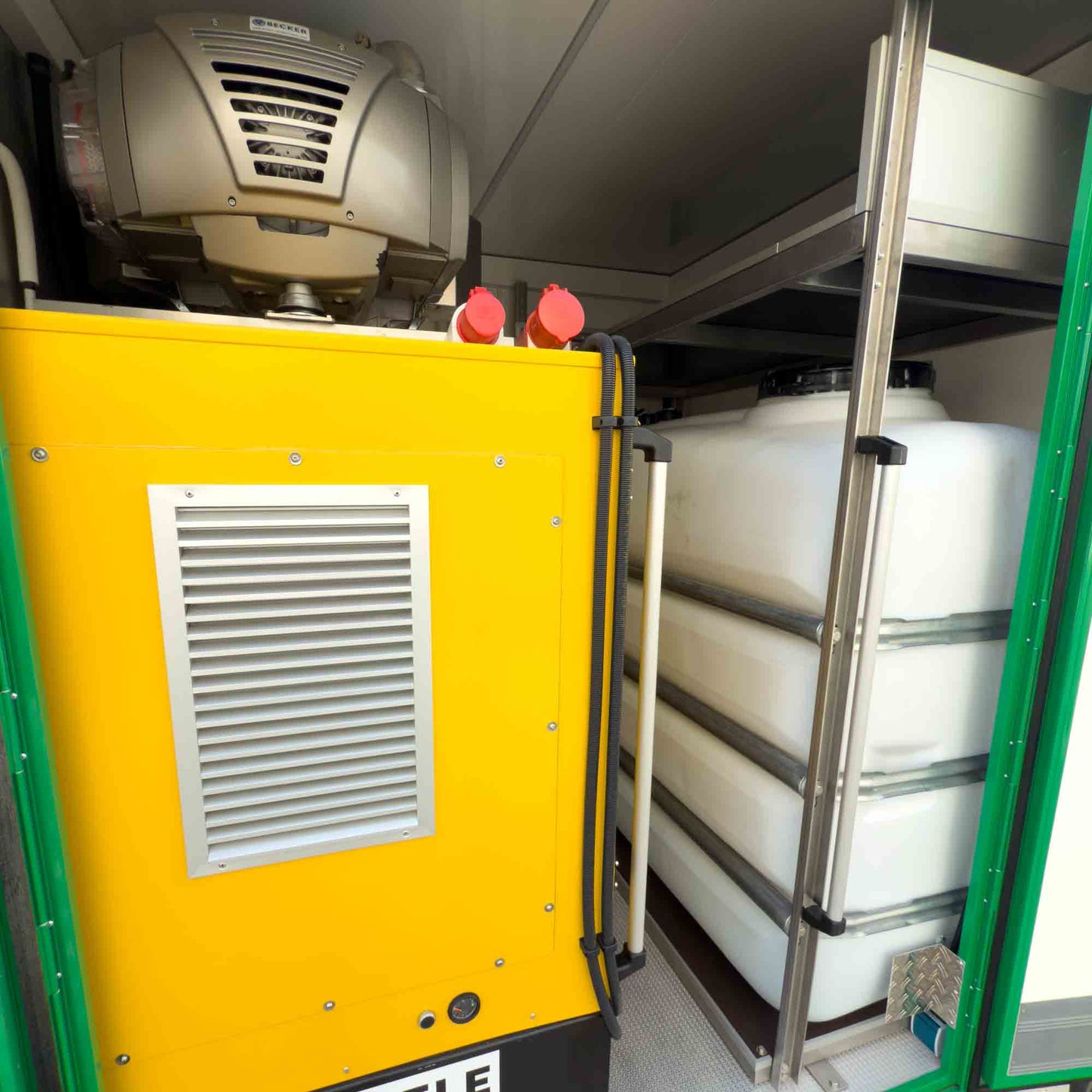

• 2,700 l water tank with automatic filling and sensor monitoring.

• Operation via vehicle control panel or wireless remote control for maximum flexibility.

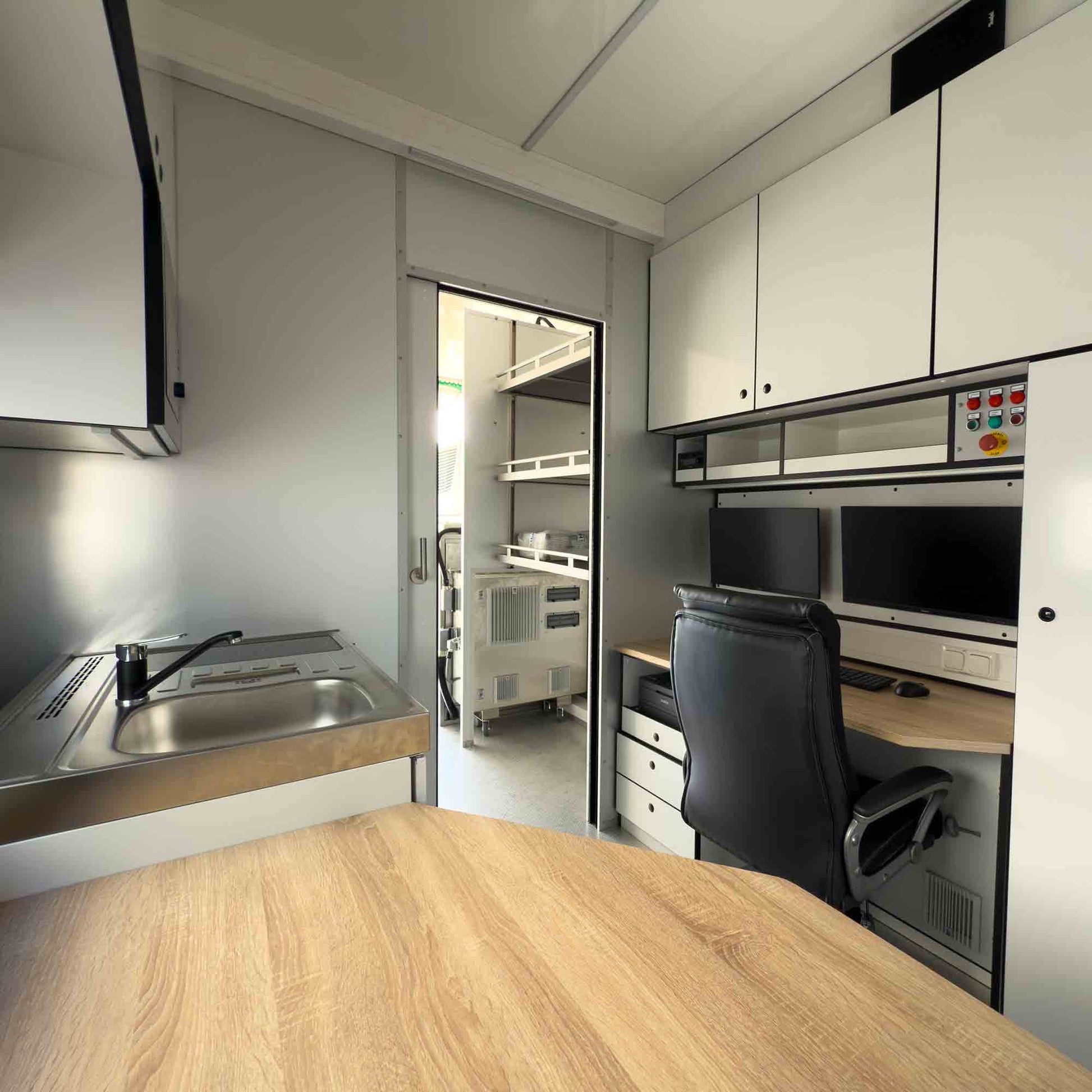

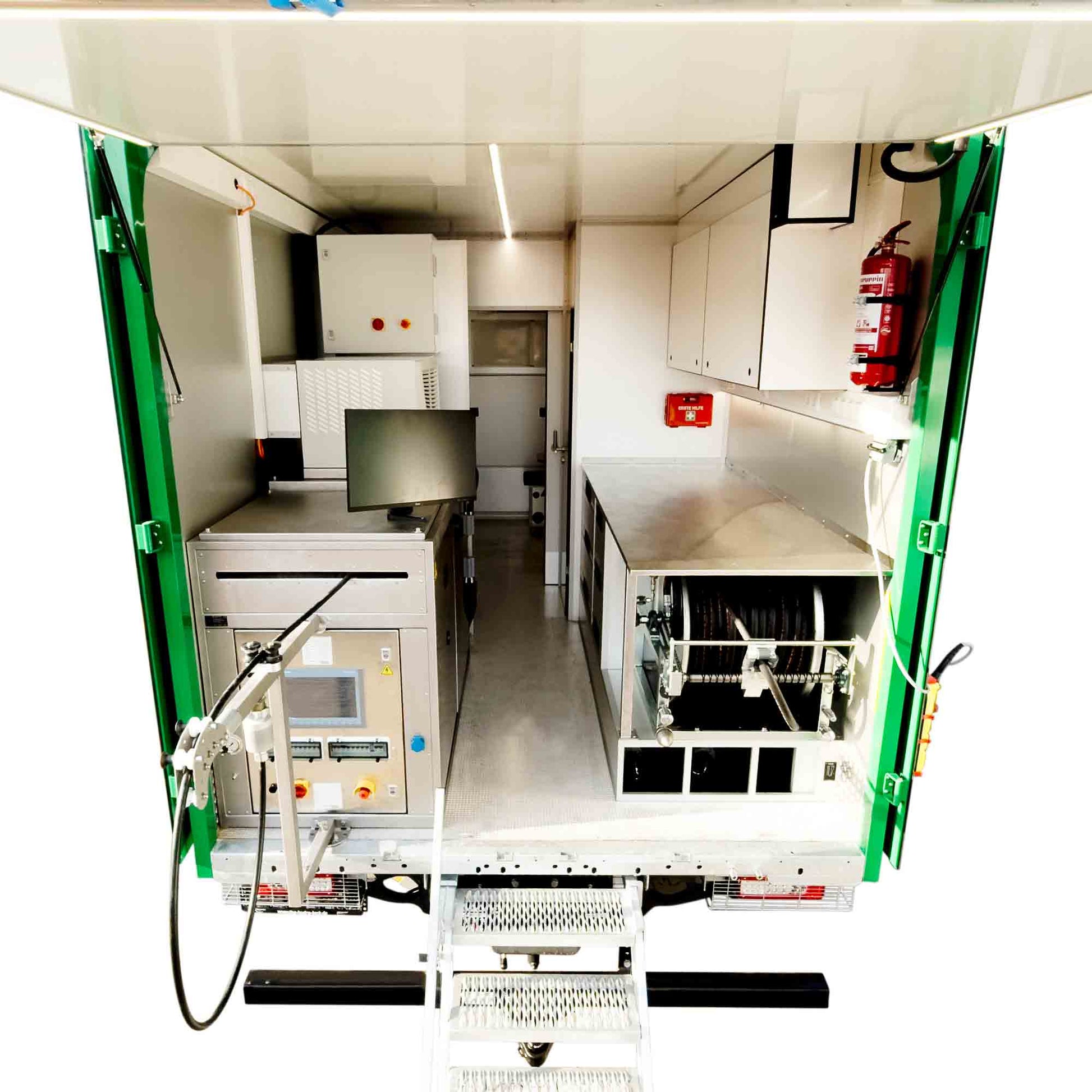

Operator-Friendly Workspace Design

• Ergonomic rotatable work chair with operator holder for driving mode.

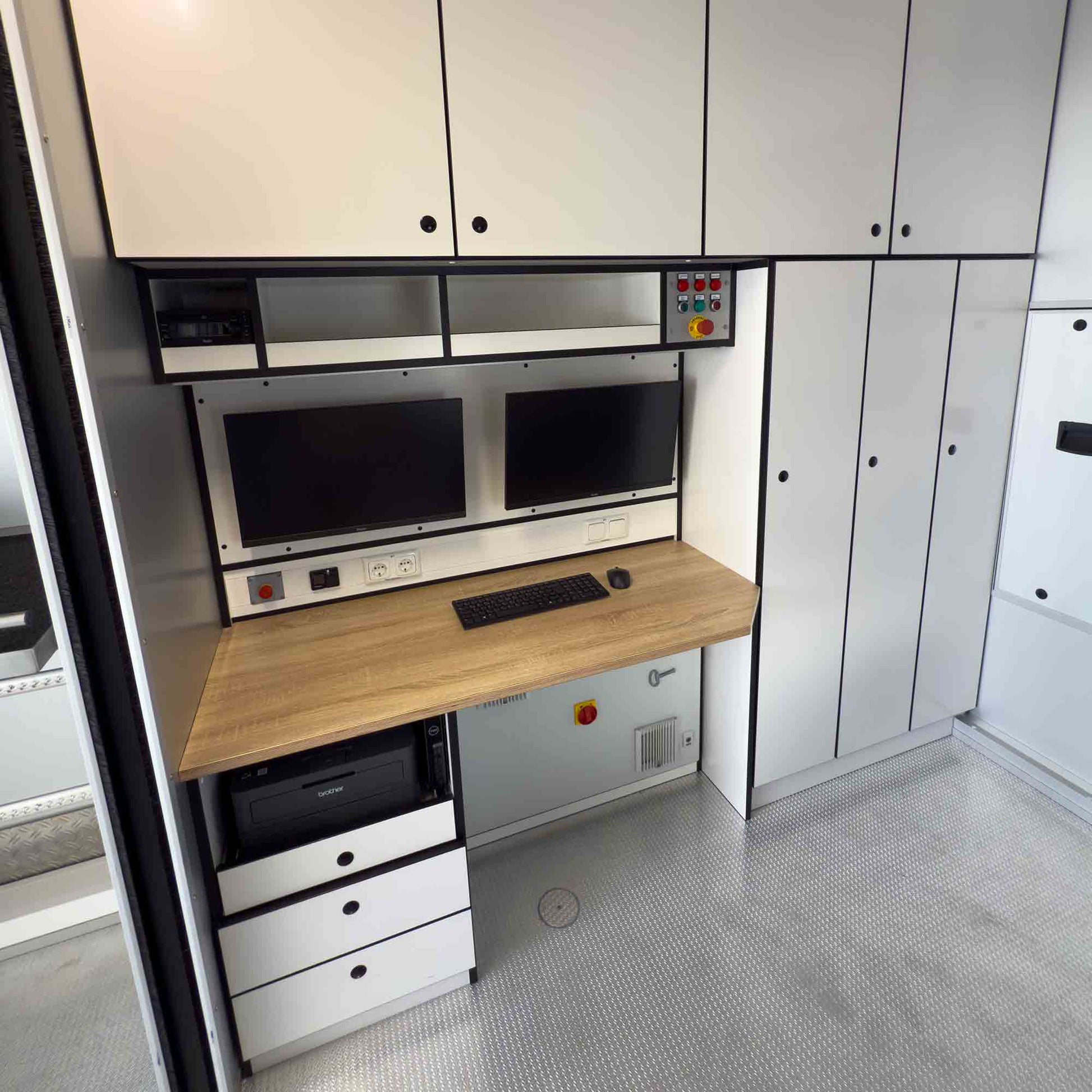

• Two 24" monitors, PC workstation with pre-installed software, and laser printer for instant reporting.

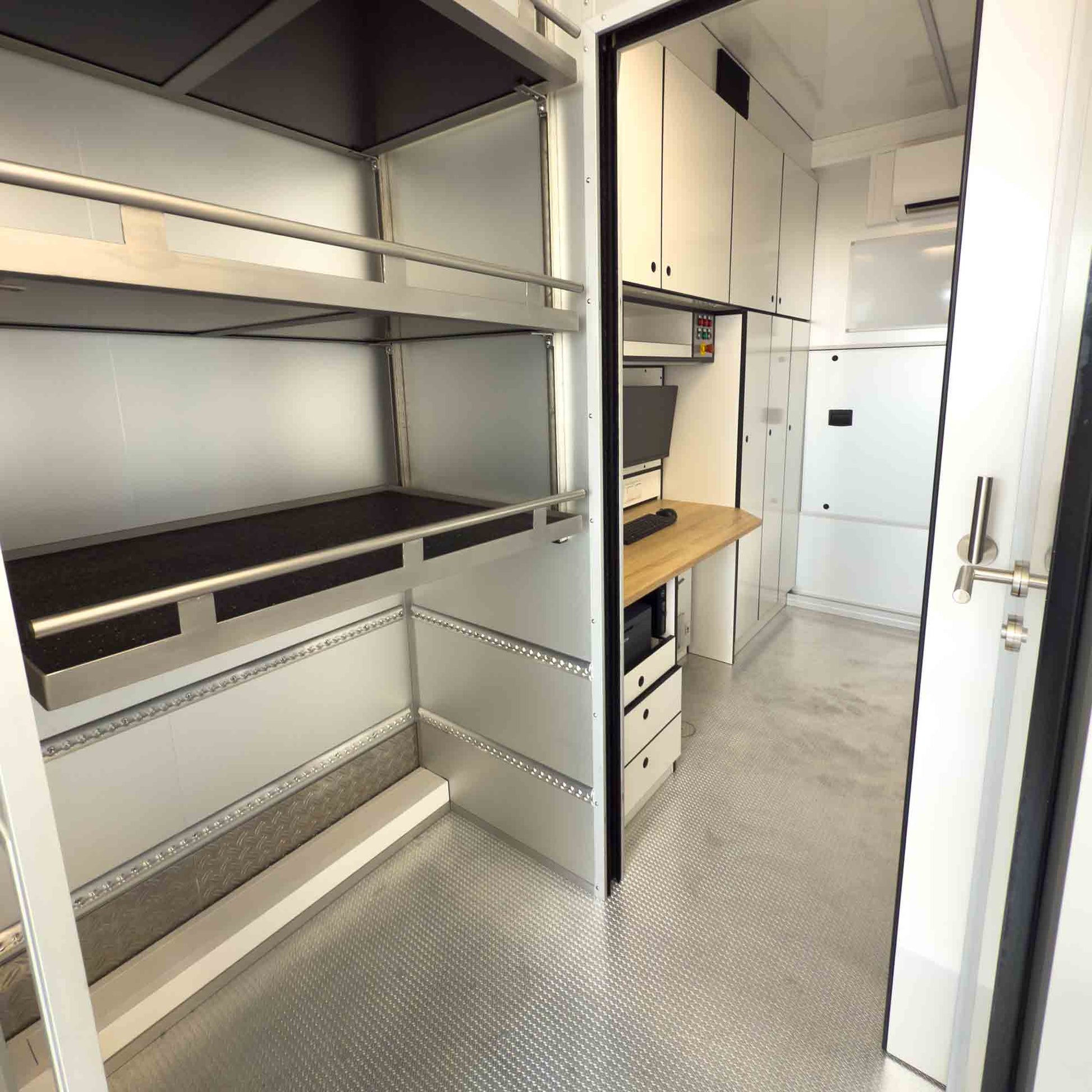

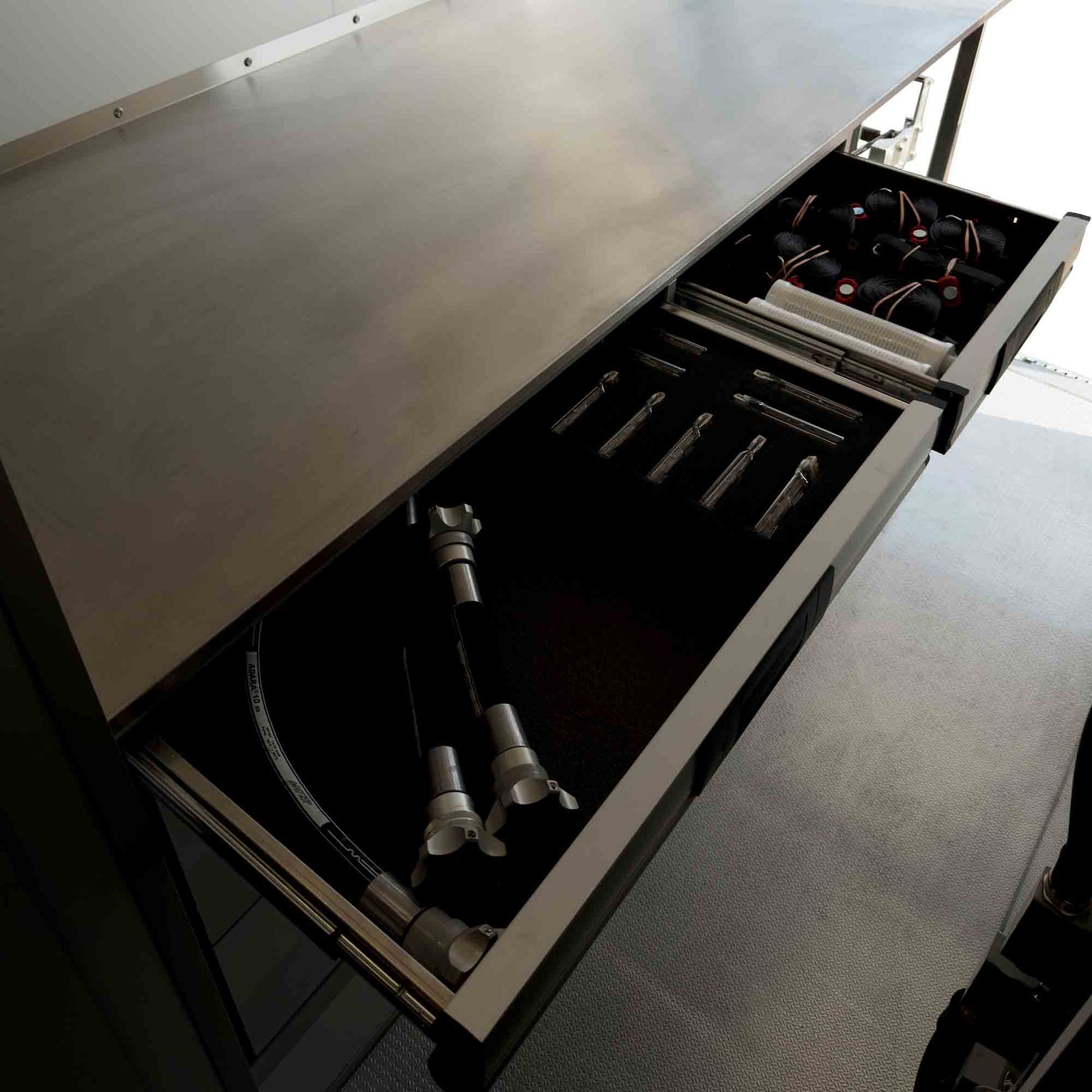

• Stainless steel workbench with rotating vice, 9 drawers, wall cabinet, and generous storage for accessories and tools.
