Inliner Hybrid Curing System

IBG Inliner Hybrid Curing System – Steam & Hot Water. One System. Maximum Flexibility.

Engineered for the future of trenchless pipe rehabilitation, the IBG Inliner Hybrid Curing System combines the best of both worlds: powerful steam curing and high-capacity hot water curing in one compact, trailer-based unit.

• Hybrid Power – 1,640 kW output with up to 1,950 kg/h (4,400 lbs/h) of steam or 1.5 MW hot water capacity via advanced heat exchanger technology.

• Large-Scale Performance – Designed to cure liners up to DN 2,500 (100"), with 160 m³/h pumping circulation for maximum efficiency on big-diameter projects.

• Smart Control – Fully automated PLC Process Control with IBG Steamcure 4.0 software, remote access, internet connection, and secure cloud-based data logging.

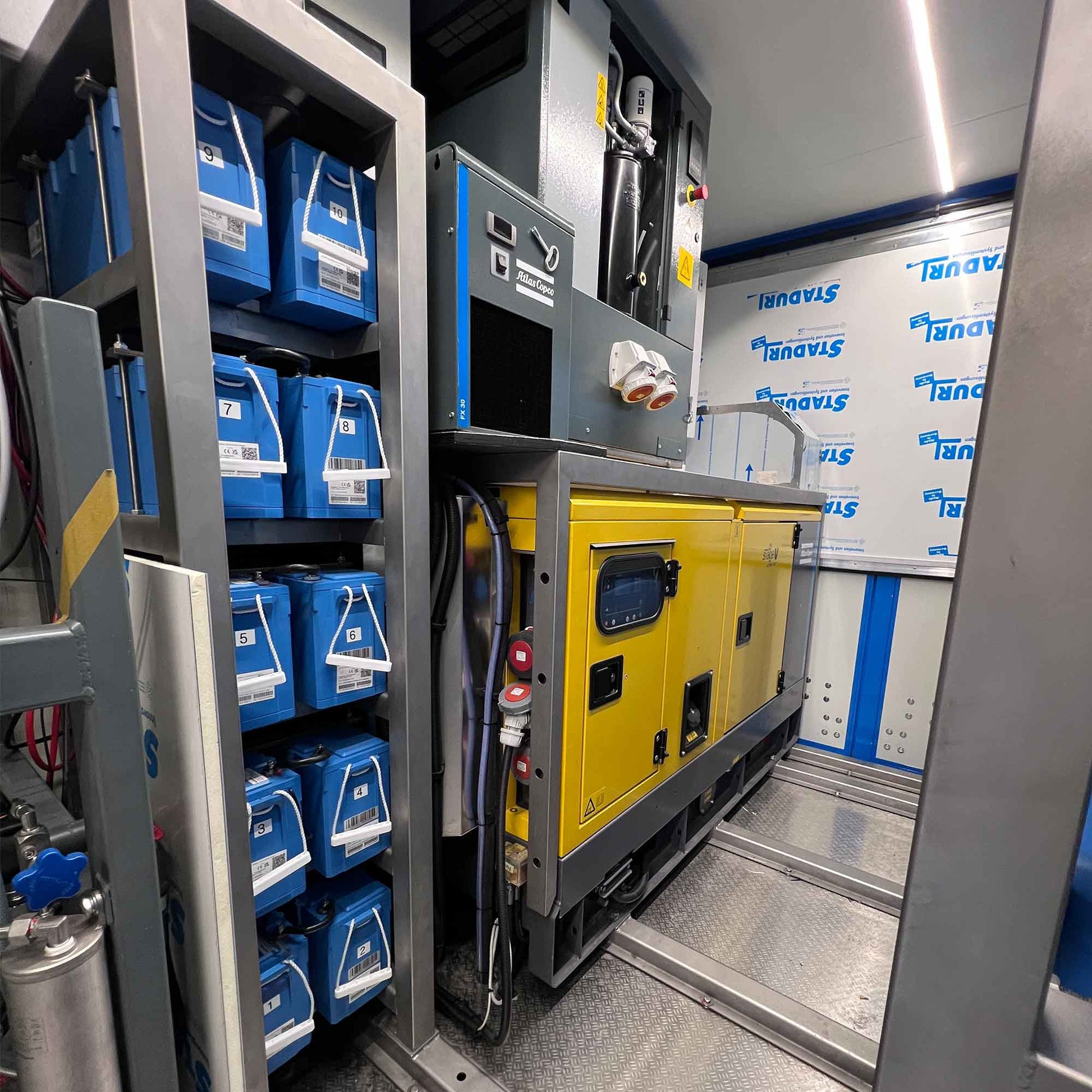

• Sustainable Innovation – Equipped with the IBG Zero Emission Package: a 45 kWh battery pack with integrated PV components, 40 kVA generator, and 10 kW compressor for optimized energy use and reduced emissions.

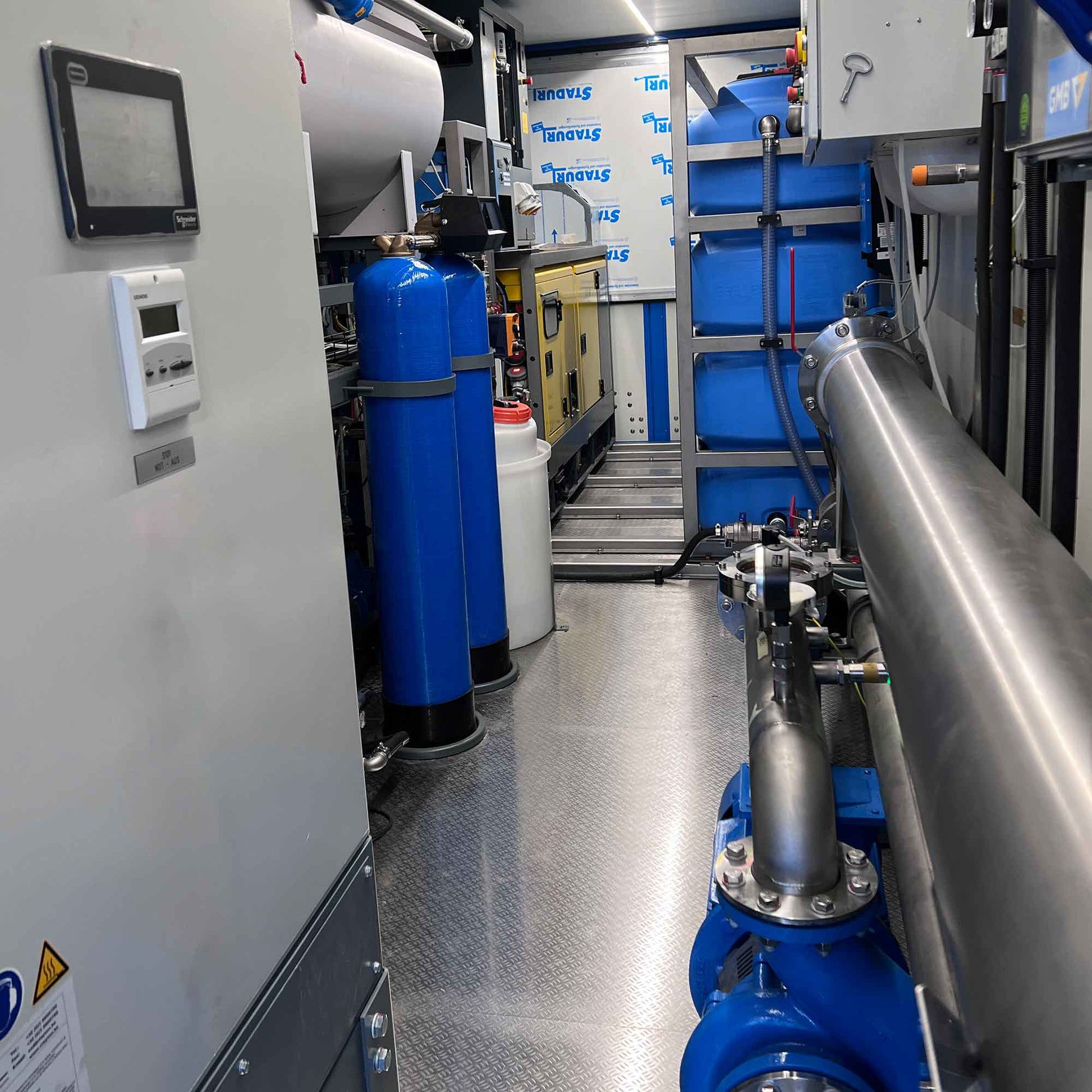

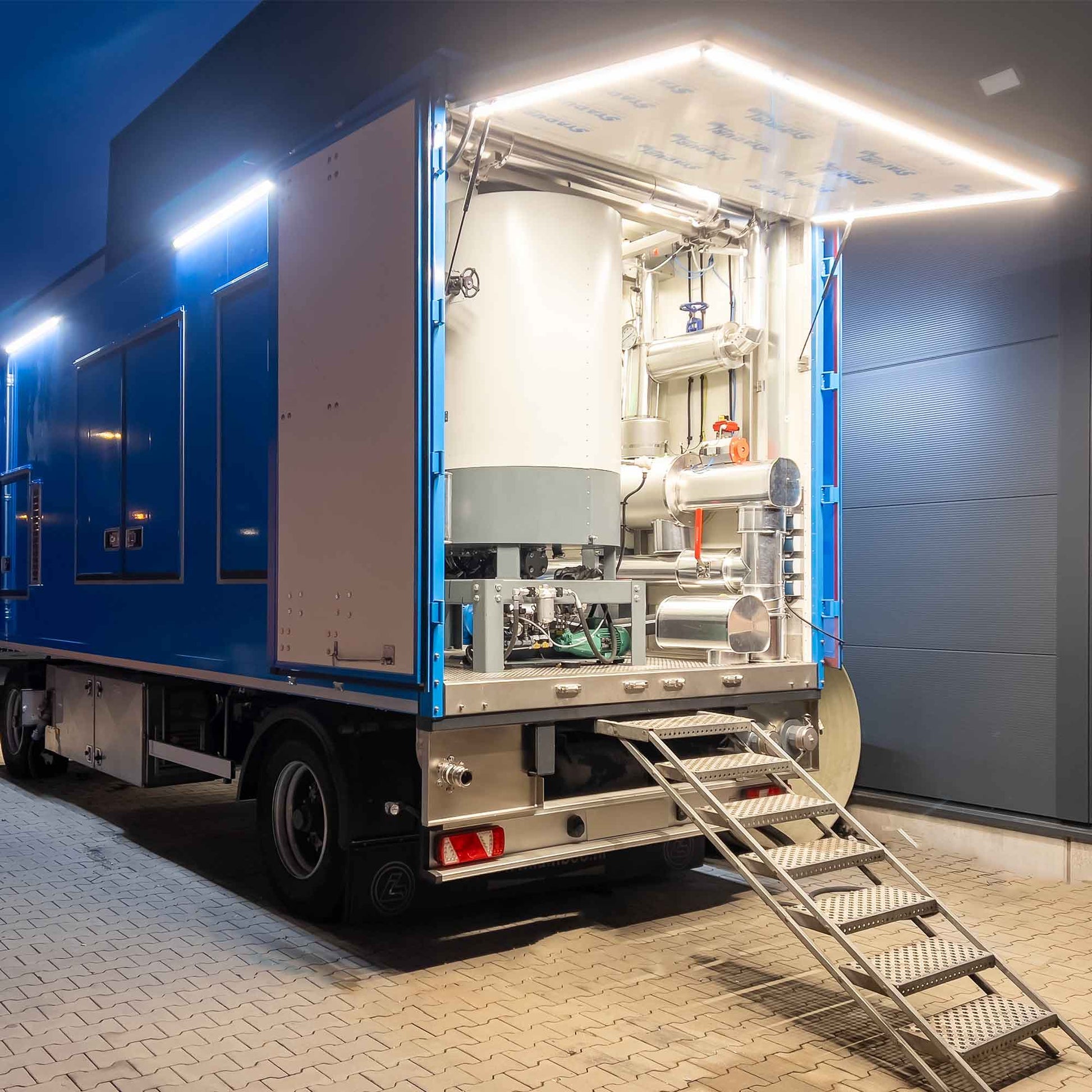

• Operational Excellence – Trailer-based, ready-to-work design with short set-up times, large 3,400 L (790 gal) water tank with water softener, 1,000 L (270 gal) oil tank, full insulation, stainless steel flooring, and integrated LED lighting.

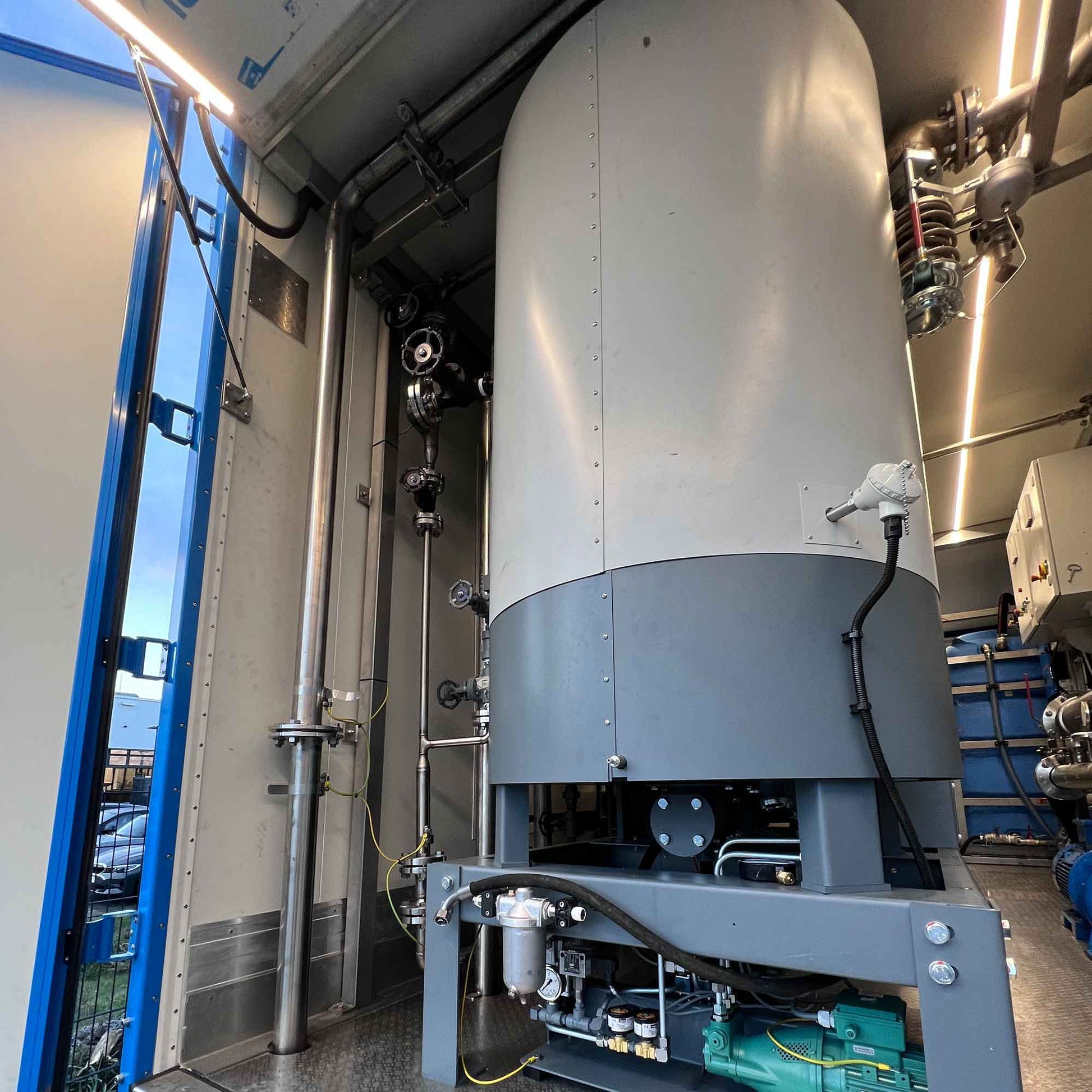

• Efficiency & Reliability – Continuously modulating burner ensures precise temperature control up to 140 °C (284 °F) for consistent curing quality.

The IBG Inliner Hybrid Curing System delivers unmatched flexibility, performance, and sustainability—making it the ultimate solution for contractors and utilities worldwide.
