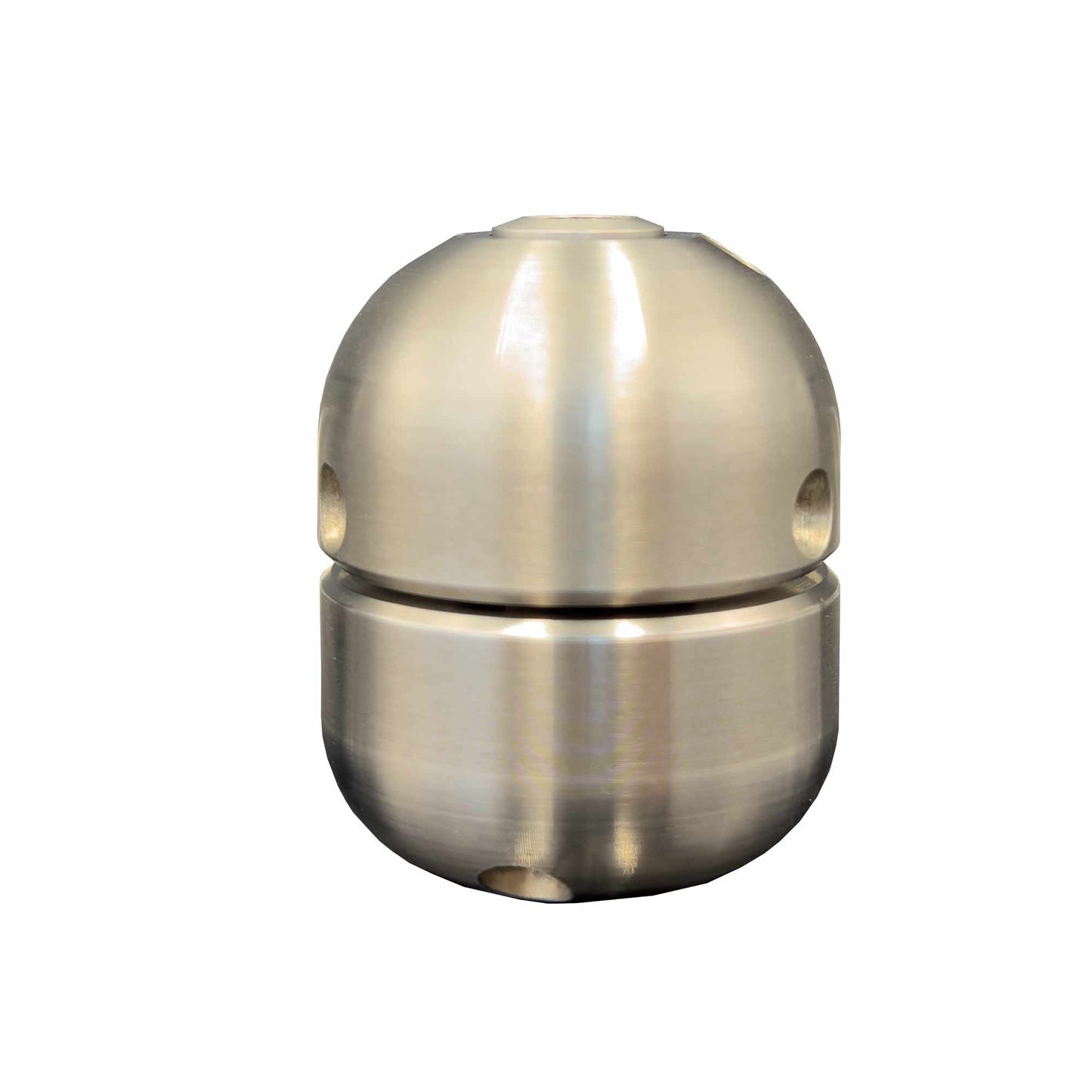

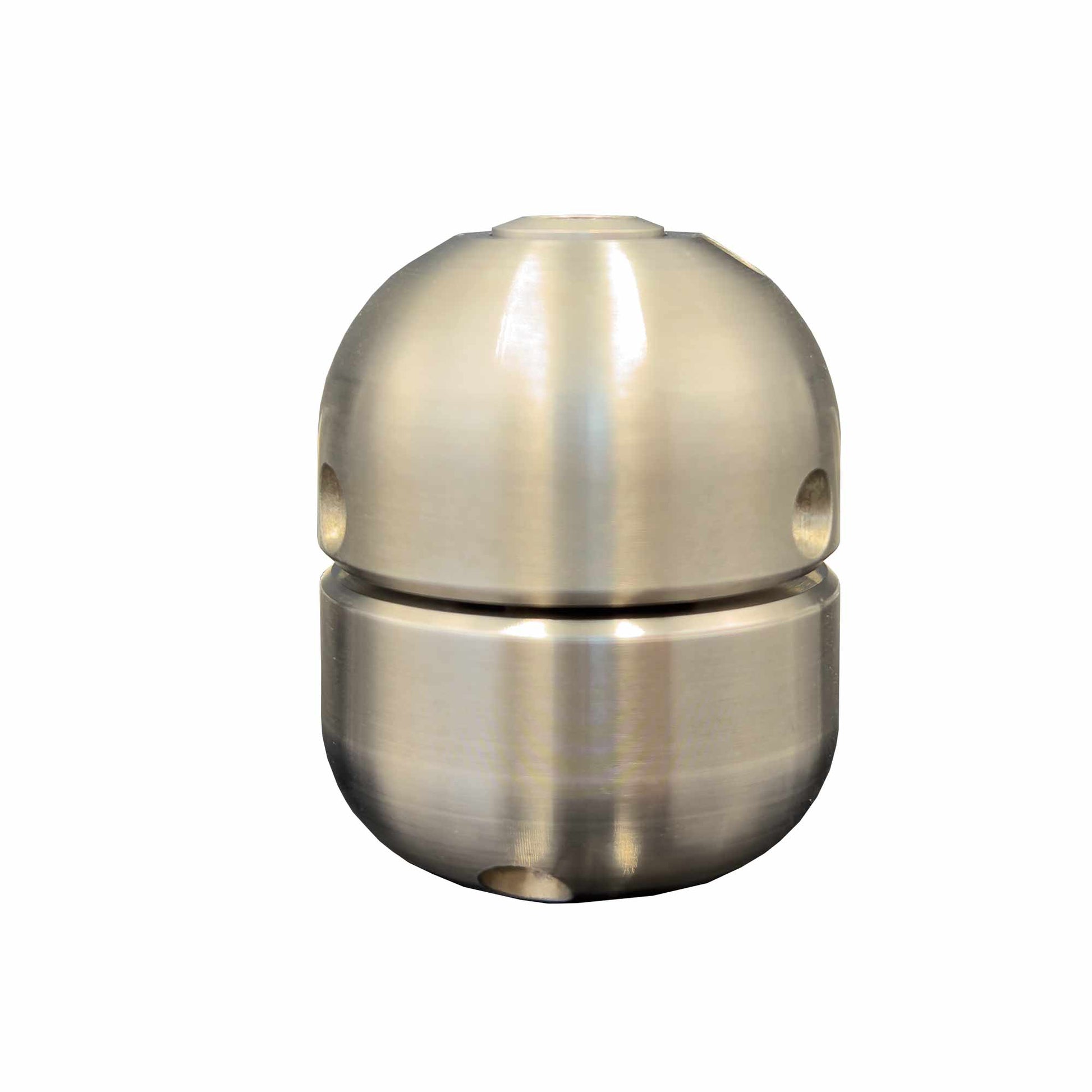

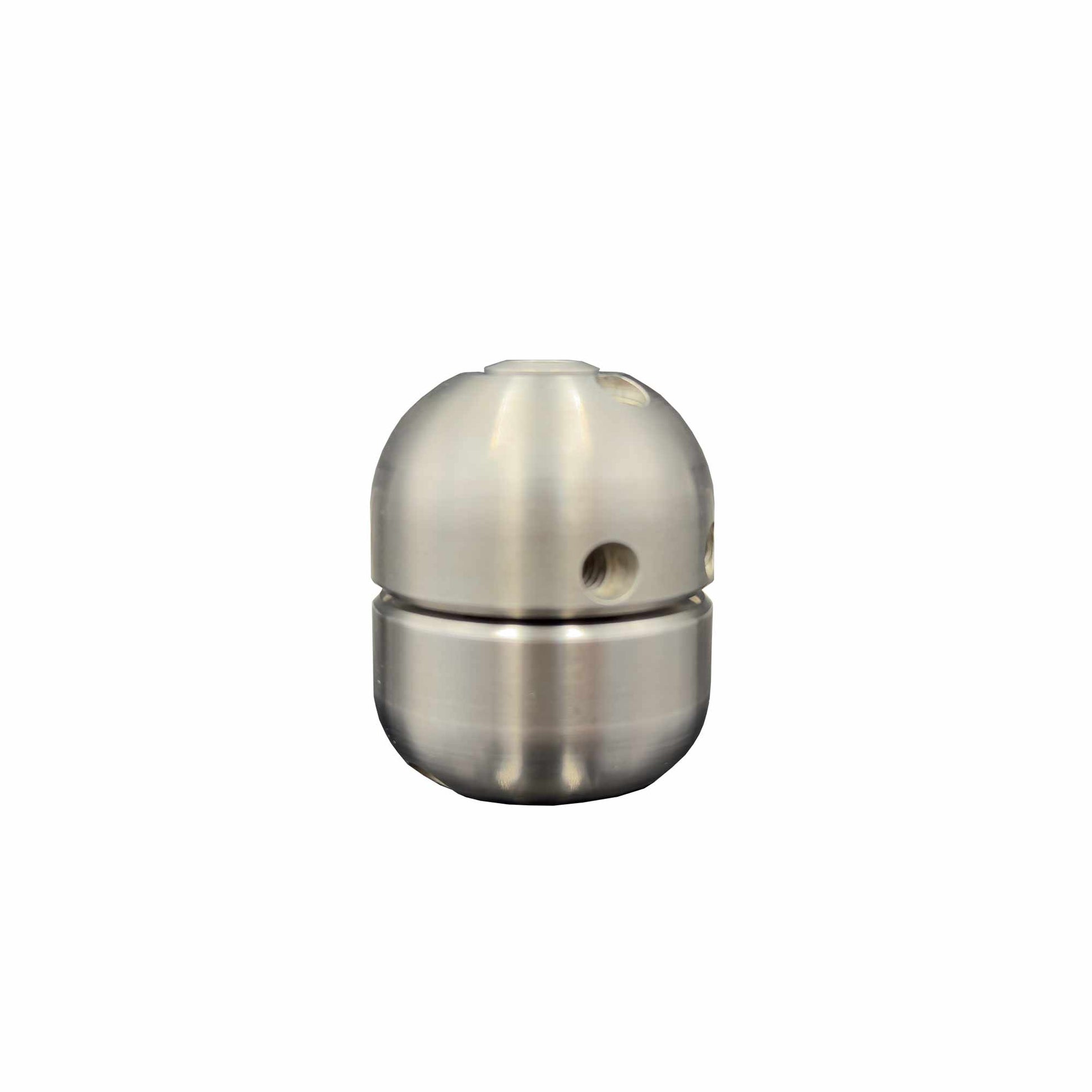

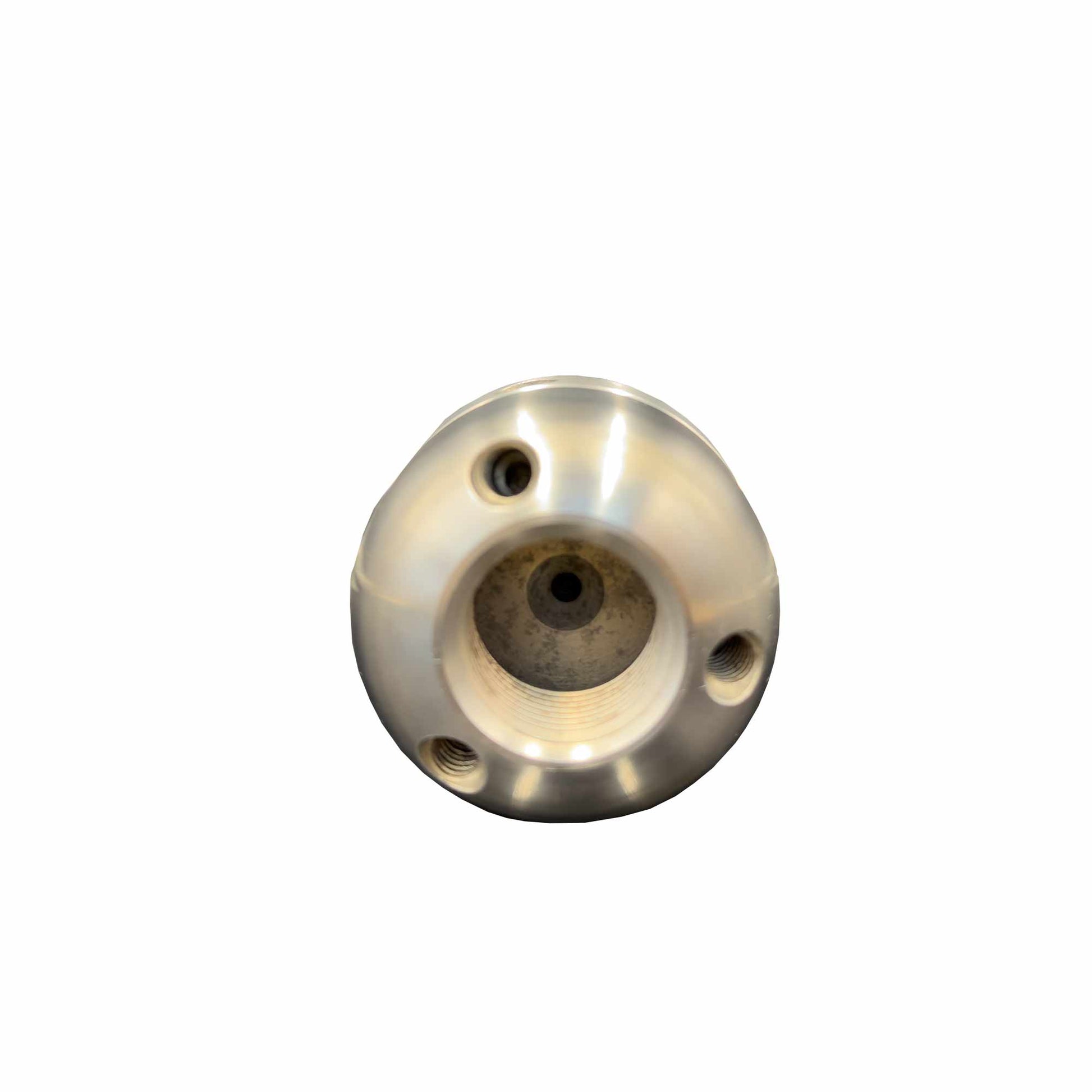

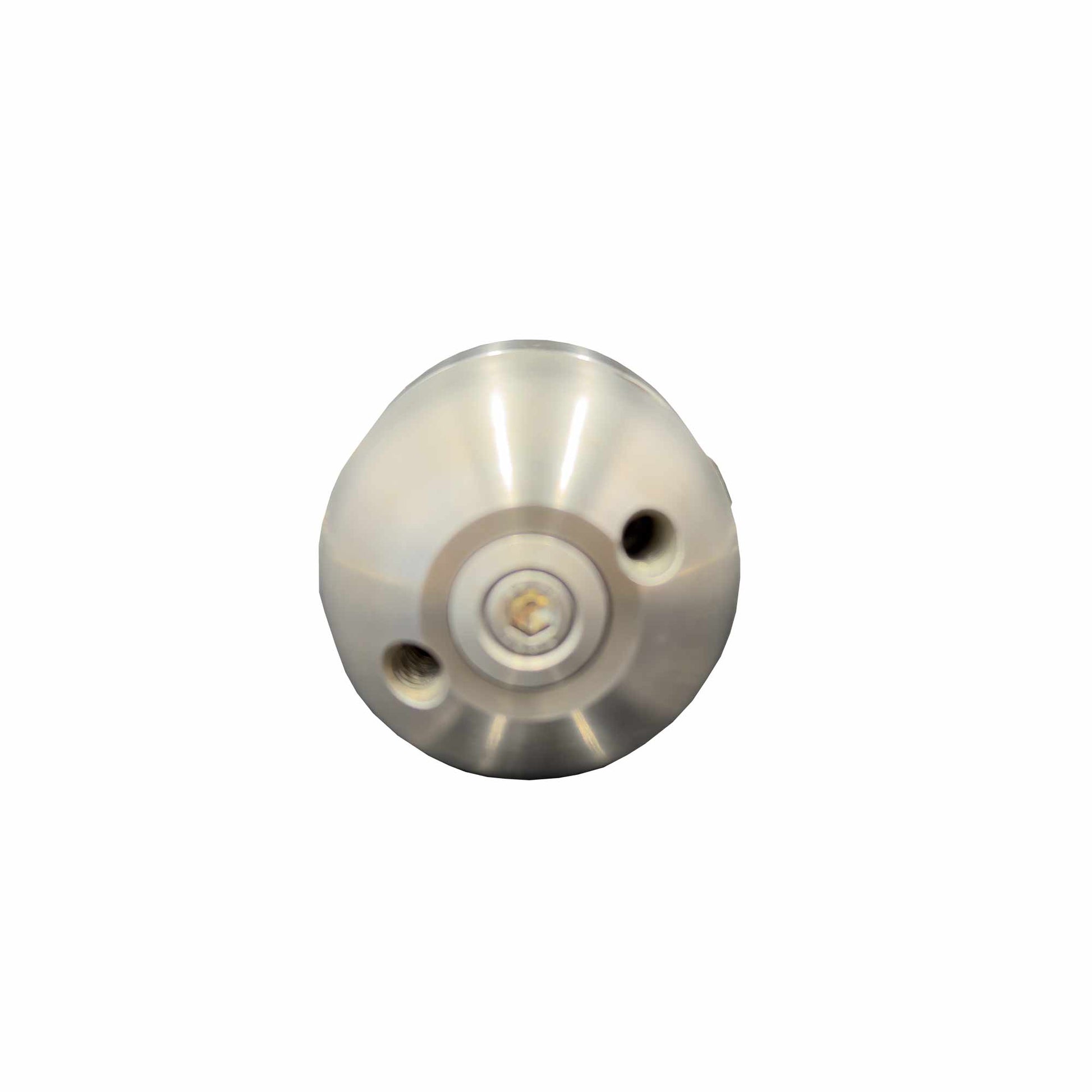

Rotating pre-jetting nozzle
Rotating pre-jetting nozzle
SKU: 02 07 01 01 4 02 03
plus VAT and shipping costs
Regular price
€860,96 EUR
Regular price
Sale price
€860,96 EUR
Unit price
per
0 | 400 | |
50 | | 400 |
0 | |
300 |
The rotor pre-steel nozzle offers exceptional cleaning power thanks to the precise arrangement and rotation of the jets. It effectively removes mineral deposits, grease, limestone and other impurities from pipes and ducts without damaging the structure of the pipes. This nozzle is ideal for daily use and ensures long-lasting, thorough cleaning.
- Special jet pattern: The rotor pre-steel nozzle uses an optimized jet pattern that ensures even cleaning of the inside walls of pipes and ducts.
- Removal of mineral deposits: Particularly effective at removing minerals, limestone, grease and other deposits.
- Suitable for daily use: Ideal for regular maintenance and cleaning work, with a robust design for long-lasting use.
- Forward and reverse jet: The precise jet angle of 10 degrees forwards and 12 degrees backwards guarantees a high cleaning effect from all directions.
The rotor forward jet nozzle is suitable for cleaning pipes and ducts that are clogged with mineral deposits, grease, slag or limestone. Thanks to the rotation and the targeted jet pattern, even hard-to-reach areas can be cleaned effectively. It is suitable for industrial applications and regular maintenance of sewers and pipe systems.
- Special jet pattern: The rotor pre-steel nozzle uses an optimized jet pattern that ensures even cleaning of the inside walls of pipes and ducts.
- Removal of mineral deposits: Particularly effective at removing minerals, limestone, grease and other deposits.
- Suitable for daily use: Ideal for regular maintenance and cleaning work, with a robust design for long-lasting use.
- Forward and reverse jet: The precise jet angle of 10 degrees forwards and 12 degrees backwards guarantees a high cleaning effect from all directions.
The rotor forward jet nozzle is suitable for cleaning pipes and ducts that are clogged with mineral deposits, grease, slag or limestone. Thanks to the rotation and the targeted jet pattern, even hard-to-reach areas can be cleaned effectively. It is suitable for industrial applications and regular maintenance of sewers and pipe systems.
⚙️ Connection thread
⚙️ Connection thread
1/2"
➡️ Front Jet
➡️ Front Jet
2 x M6
⬅️ Back Jet
⬅️ Back Jet
6 x M6
🔄 Rotating nozzles
🔄 Rotating nozzles
4 x M6
🕳️ Fields of application
🕳️ Fields of application
General
📐 Dimensions and weight
📐 Dimensions and weight
L 60 / ø 44 mm and
♻️ Recycled water
♻️ Recycled water
💦 Volume flow
💦 Volume flow
60 - 100
📏 Suitable for DN
📏 Suitable for DN
75 - 150





The new RotoMax 100
The RotoMax 100 was specially developed for use in industrial water.
The Rotomax is a universally applicable rotating sewer cleaning nozzle with easily and quickly exchangeable tool heads. The included wear-free brake ensures consistent, non-overriding milling characteristics. In addition, the bearings are protected, which ensures a long service life.
To RotoMax 100
The Rotomax is a universally applicable rotating sewer cleaning nozzle with easily and quickly exchangeable tool heads. The included wear-free brake ensures consistent, non-overriding milling characteristics. In addition, the bearings are protected, which ensures a long service life.
