IBG HydroTech GmbH
Mega 8 1"
Mega 8 1"
SKU: 10 03 01 01 6 05 05
plus VAT and shipping costs
Regular price
€2.557,63 EUR
Regular price
Sale price
€2.557,63 EUR
Unit price
per
| 0 | 400 | |
| 50 | | 400 |
| 0 | |
300 |

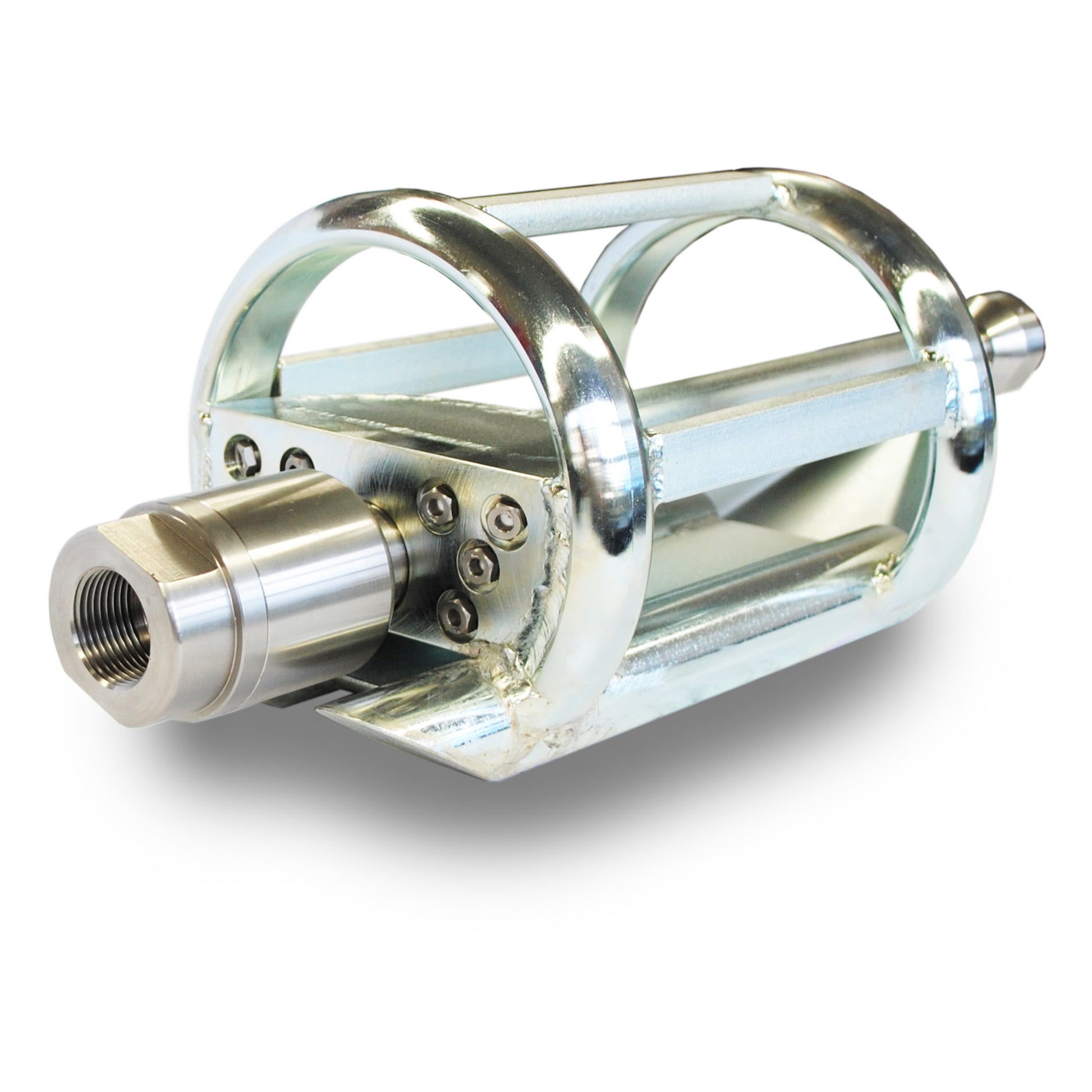

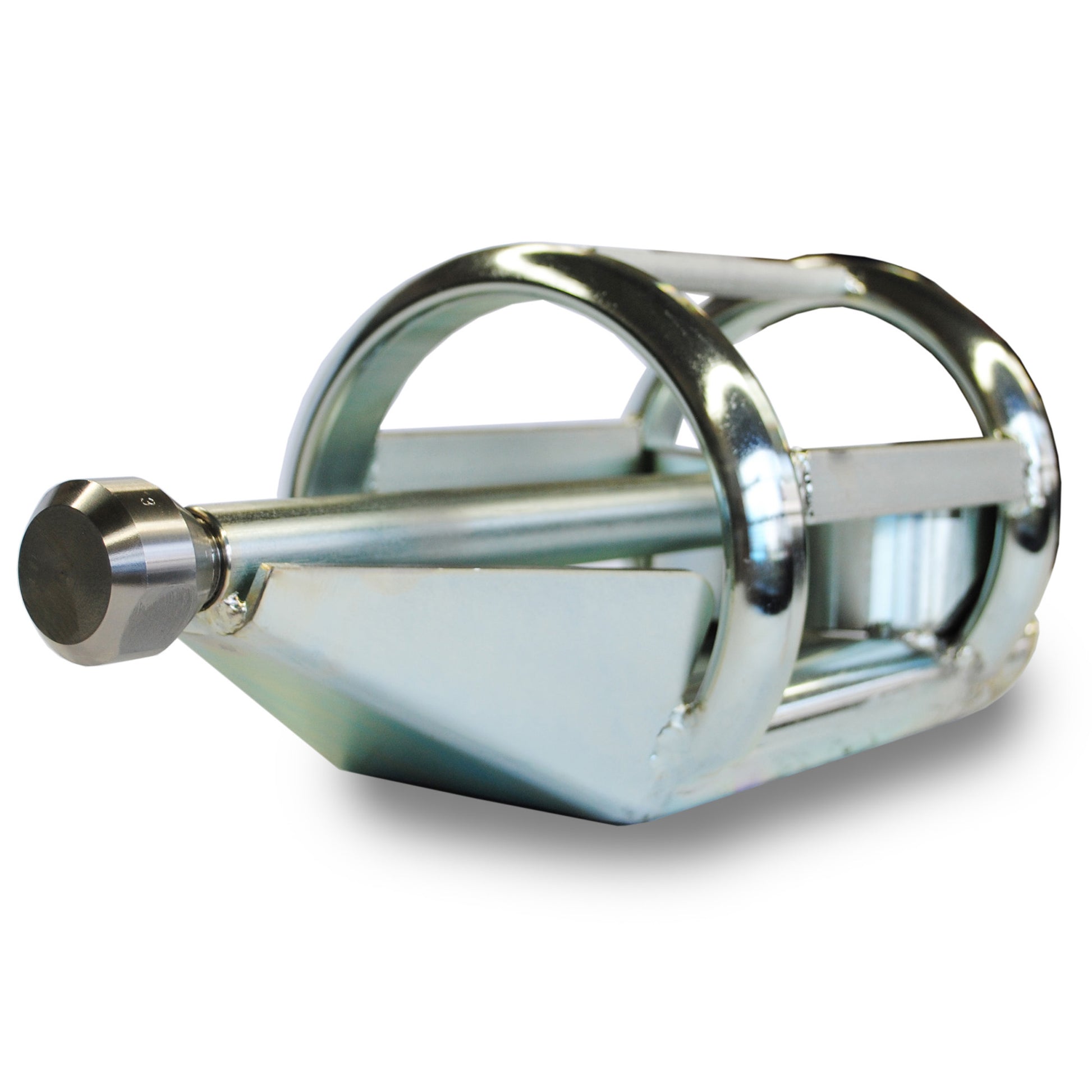

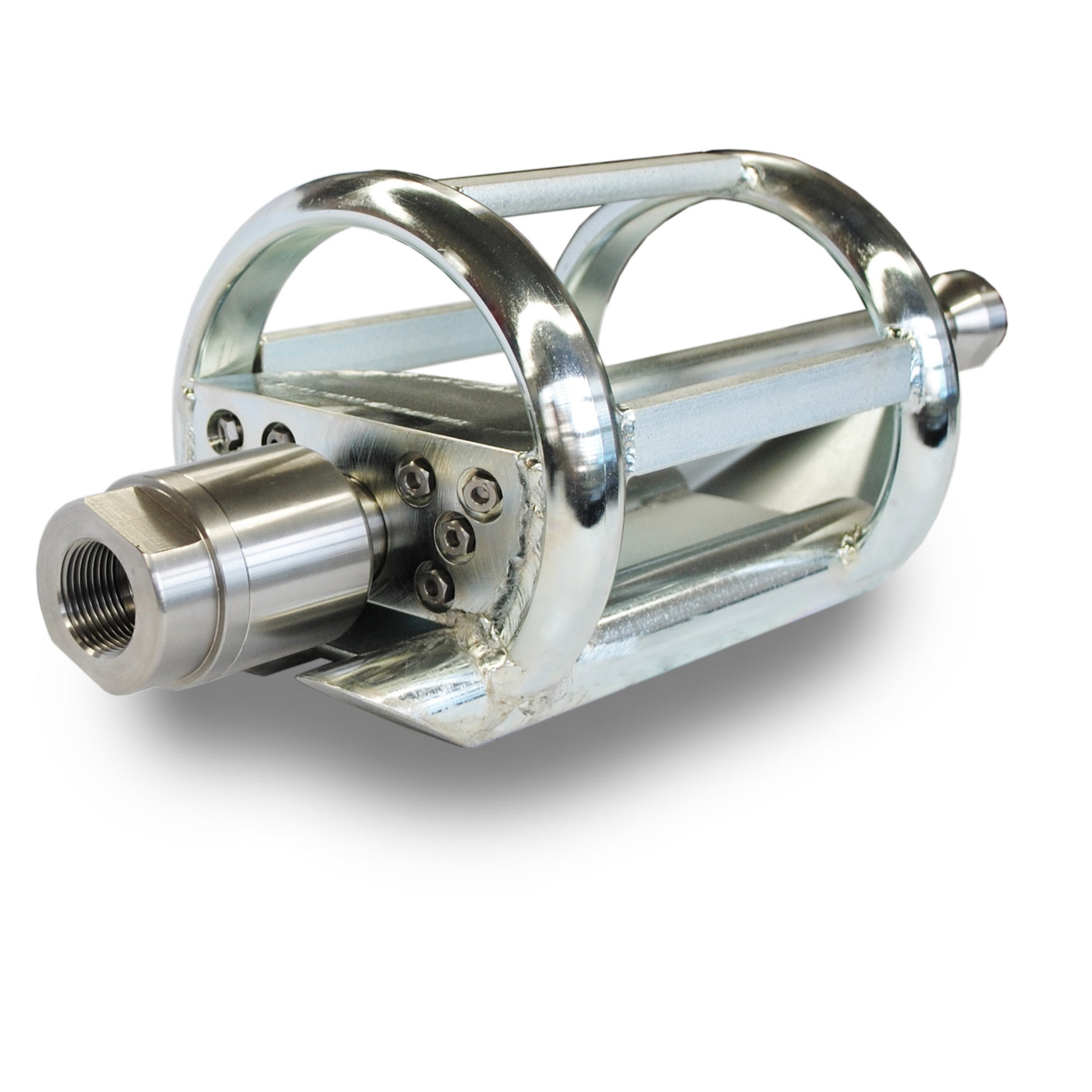

The Mega 8 nozzles do not have a swivel joint in the scope of delivery. Please refer to Mega 8 1" DRE for this. The Mega 8 nozzles with their innovative design enable exceptionally economical and fast cleaning of sand and debris in DN 300 - 1000. The use of a swivel joint can significantly increase the performance. The special arrangement of the nozzle inserts creates a fan-shaped jet that enables optimum coverage of the pipe bottom.
-Quick removal of loose material
-Fan-shaped jet
-Complete coverage of the tube sheet in the large profile
-Suitable for all common large profiles
From 390 l/min, an additional weight is required. Then a straight nozzle guidance is possible.
-Quick removal of loose material
-Fan-shaped jet
-Complete coverage of the tube sheet in the large profile
-Suitable for all common large profiles
From 390 l/min, an additional weight is required. Then a straight nozzle guidance is possible.
⚙️ Connection thread
⚙️ Connection thread
1"
➡️ Front Jet
➡️ Front Jet
No
⬅️ Back Jet
⬅️ Back Jet
8 x M10 x 1
🔄 Rotating nozzles
🔄 Rotating nozzles
No
🕳️ Fields of application
🕳️ Fields of application
Sewer bottom
📐 Dimensions and weight
📐 Dimensions and weight
L 410 B 162 H 160 mm and
♻️ Recycled water
♻️ Recycled water
Yes
💦 Volume flow
💦 Volume flow
200 -
📏 Suitable for DN
📏 Suitable for DN
300 - 1000
The new RotoMax 100
The RotoMax 100 was specially developed for use in industrial water.
The Rotomax is a universally applicable rotating sewer cleaning nozzle with easily and quickly exchangeable tool heads. The included wear-free brake ensures consistent, non-overriding milling characteristics. In addition, the bearings are protected, which ensures a long service life.
To RotoMax 100
The Rotomax is a universally applicable rotating sewer cleaning nozzle with easily and quickly exchangeable tool heads. The included wear-free brake ensures consistent, non-overriding milling characteristics. In addition, the bearings are protected, which ensures a long service life.
