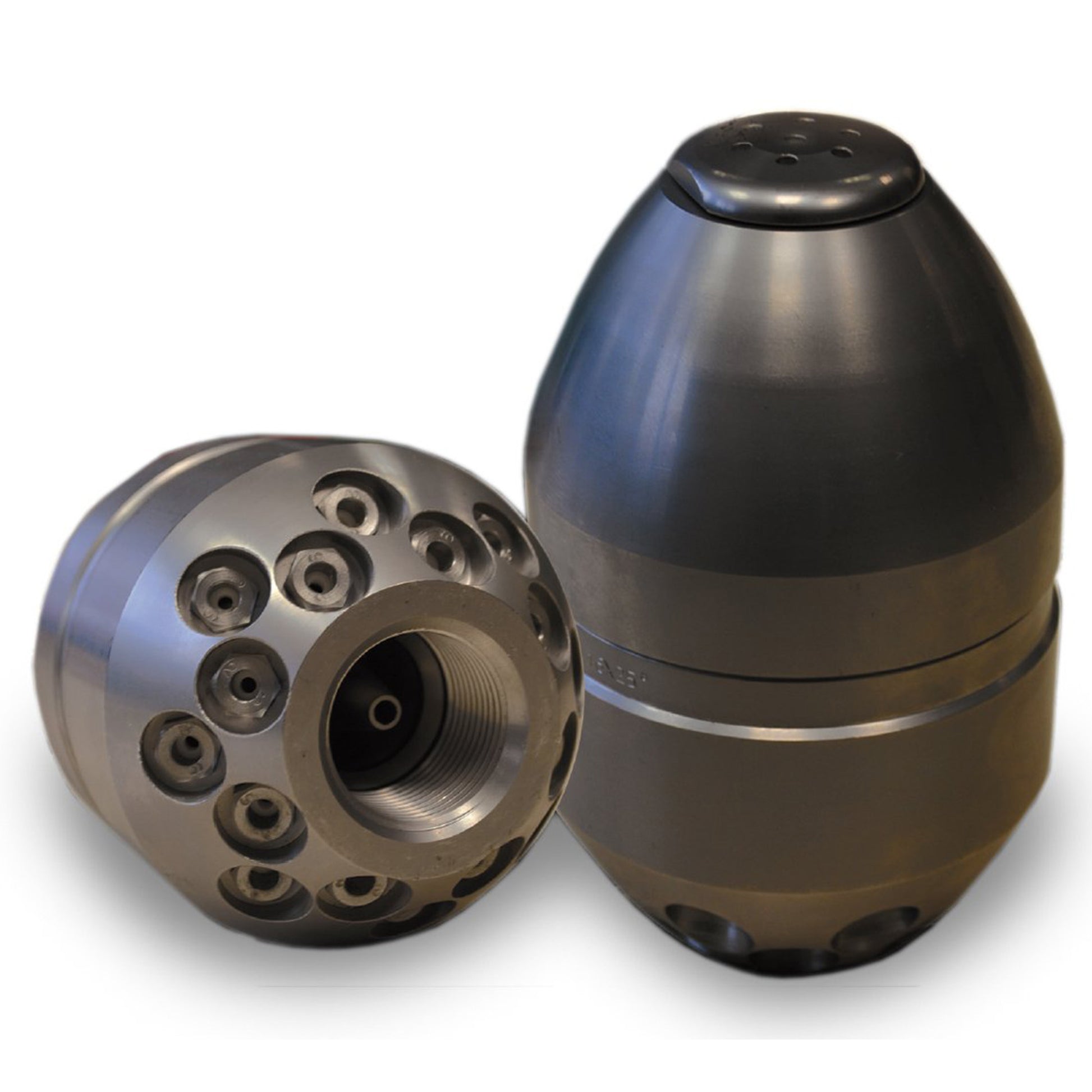

Abano 12 x 25° x 25° ws 1"

Abano 12 x 25° x 25° ws 1"

SKU: 45 01 100 12 25 25

plus VAT and shipping costs

Regular price €1.278,23 EUR
Regular price Sale price €1.278,23 EUR
Sale Sold out
Pumpenleistung in Liter
0
400
Schlauchlänge in Meter
50
400
Pumpendruck in Bar
0
300
When using ABANO nozzle technology, approx. 15% less drive power is required. The energy saved can be used for suction work.

In addition, the cross-sectional area of the nozzle inserts is reduced by approx. 15%. This means an enormous pressure increase at the nozzle inserts with minimal back pressure (approx. 1 bar).

This new technology differs in design from commercially available round spray technologies with increased cleaning performance with lower energy requirements and material usage.

⚙️ Connection thread

1"

➡️ Front Jet

Optional 4 x M7

⬅️ Back Jet

12 x M10 x 1 25° x 25° ws

🔄 Rotating nozzles

No

🕳️ Fields of application

Removal of low and medium soap and grease deposits. Perfect before TV inspection

📐 Dimensions and weight

L 151 / ø 88 mm and 4.5 kg

♻️ Recycled water

Yes

💦 Volume flow

300 -

📏 Suitable for DN

150 - 400
View full details

The new RotoMax 100

The RotoMax 100 was specially developed for use in industrial water.

The Rotomax is a universally applicable rotating sewer cleaning nozzle with easily and quickly exchangeable tool heads. The included wear-free brake ensures consistent, non-overriding milling characteristics. In addition, the bearings are protected, which ensures a long service life.
To RotoMax 100
